• Cruise control, electronic, automatic

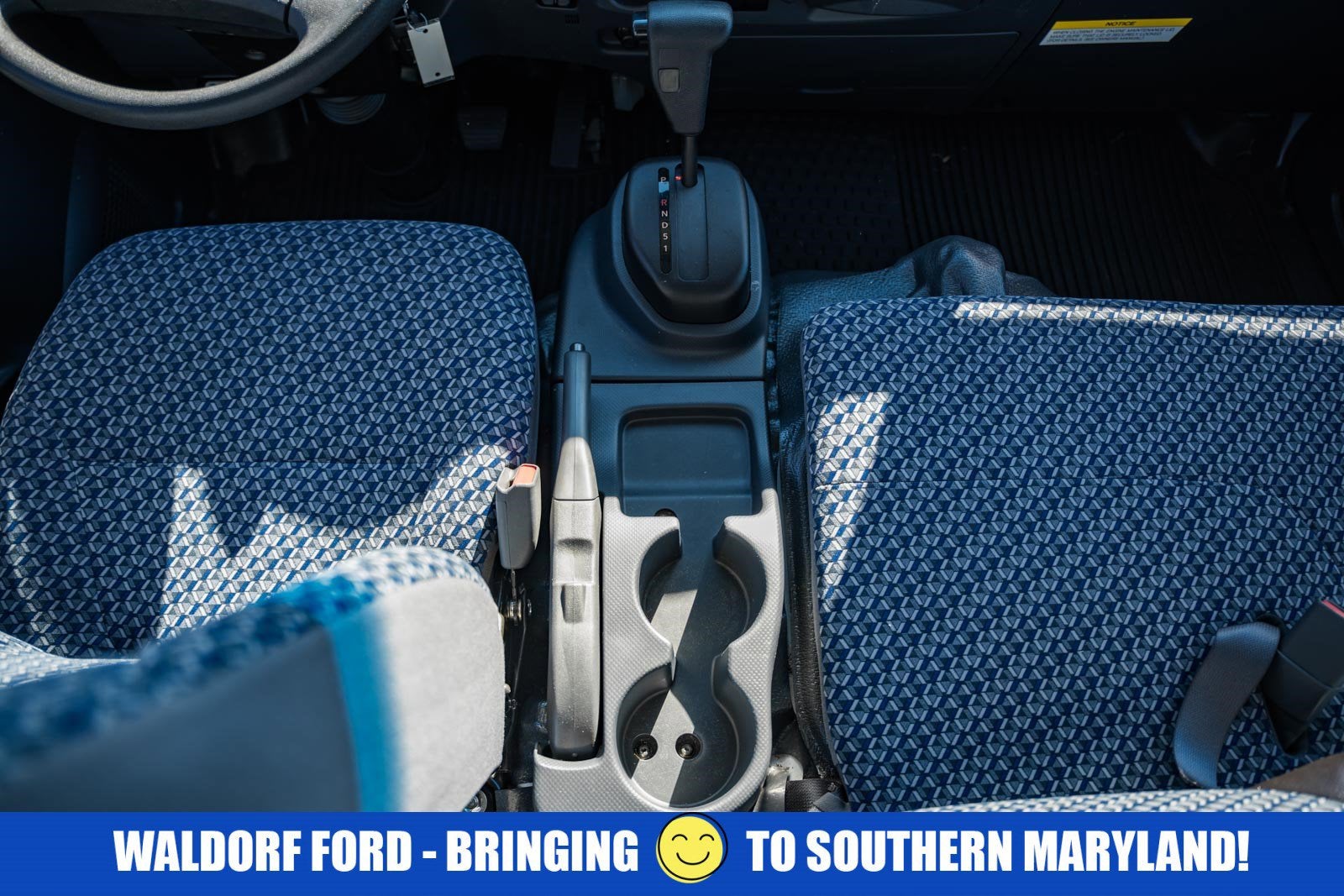

• Cup holders

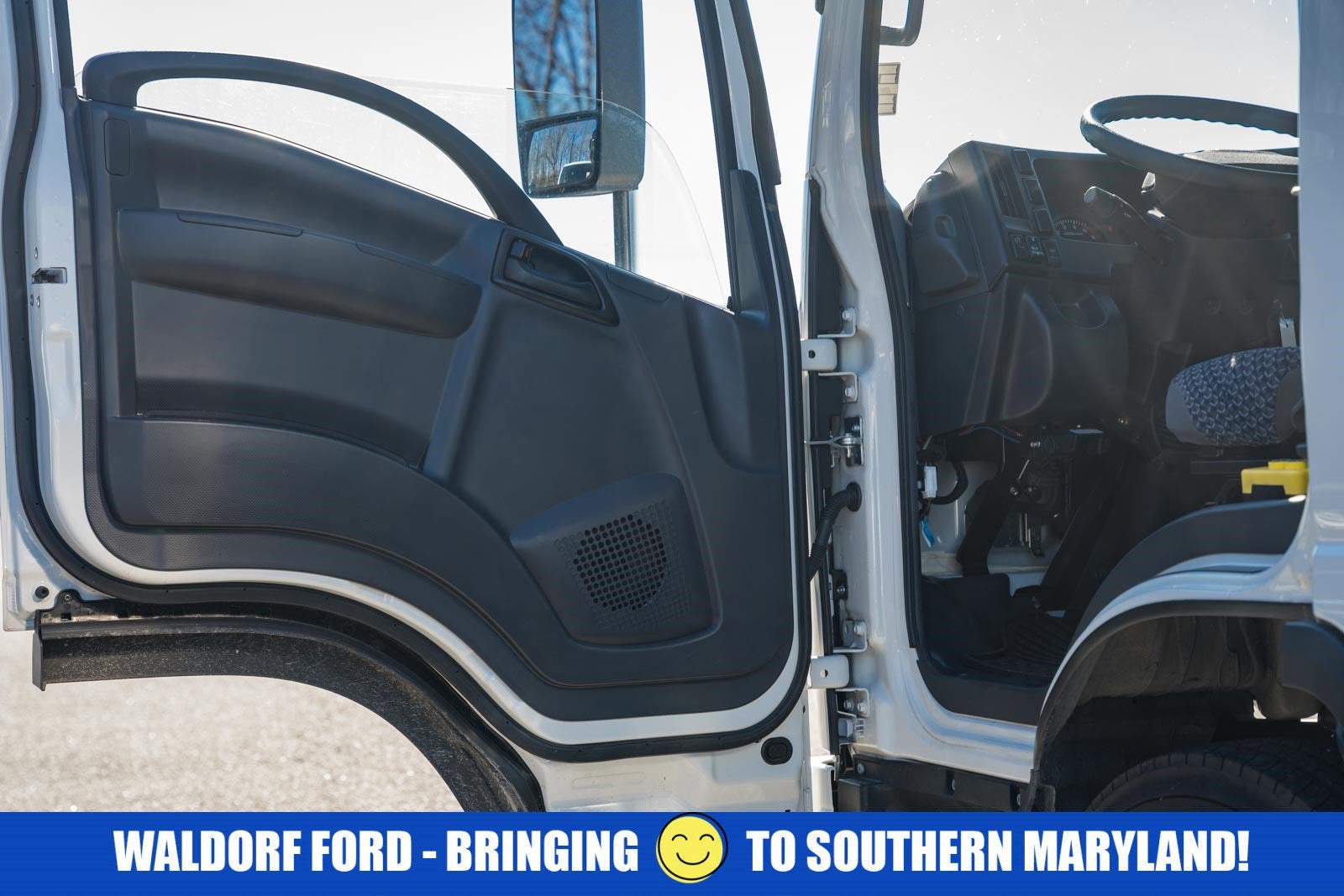

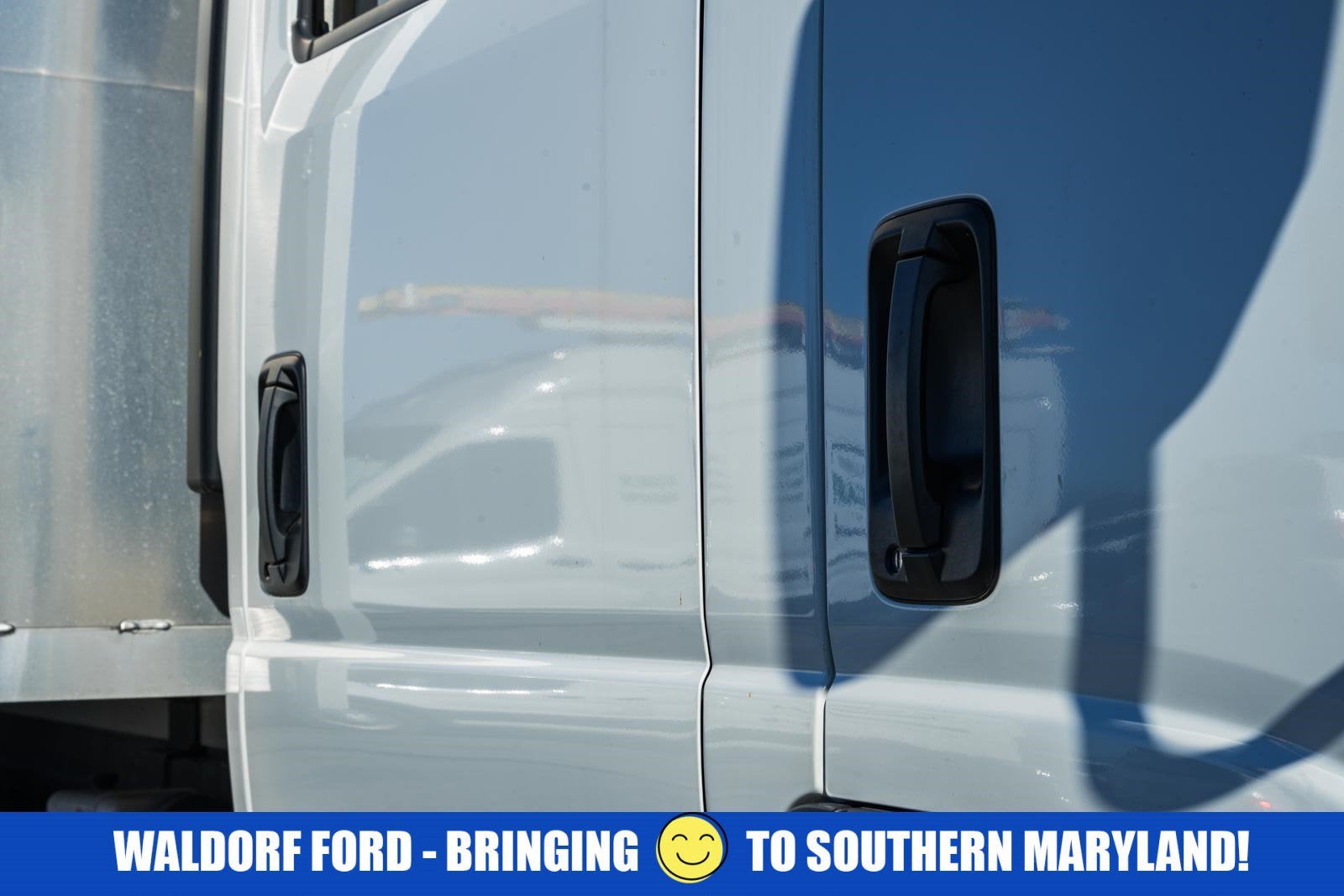

• Door locks, power

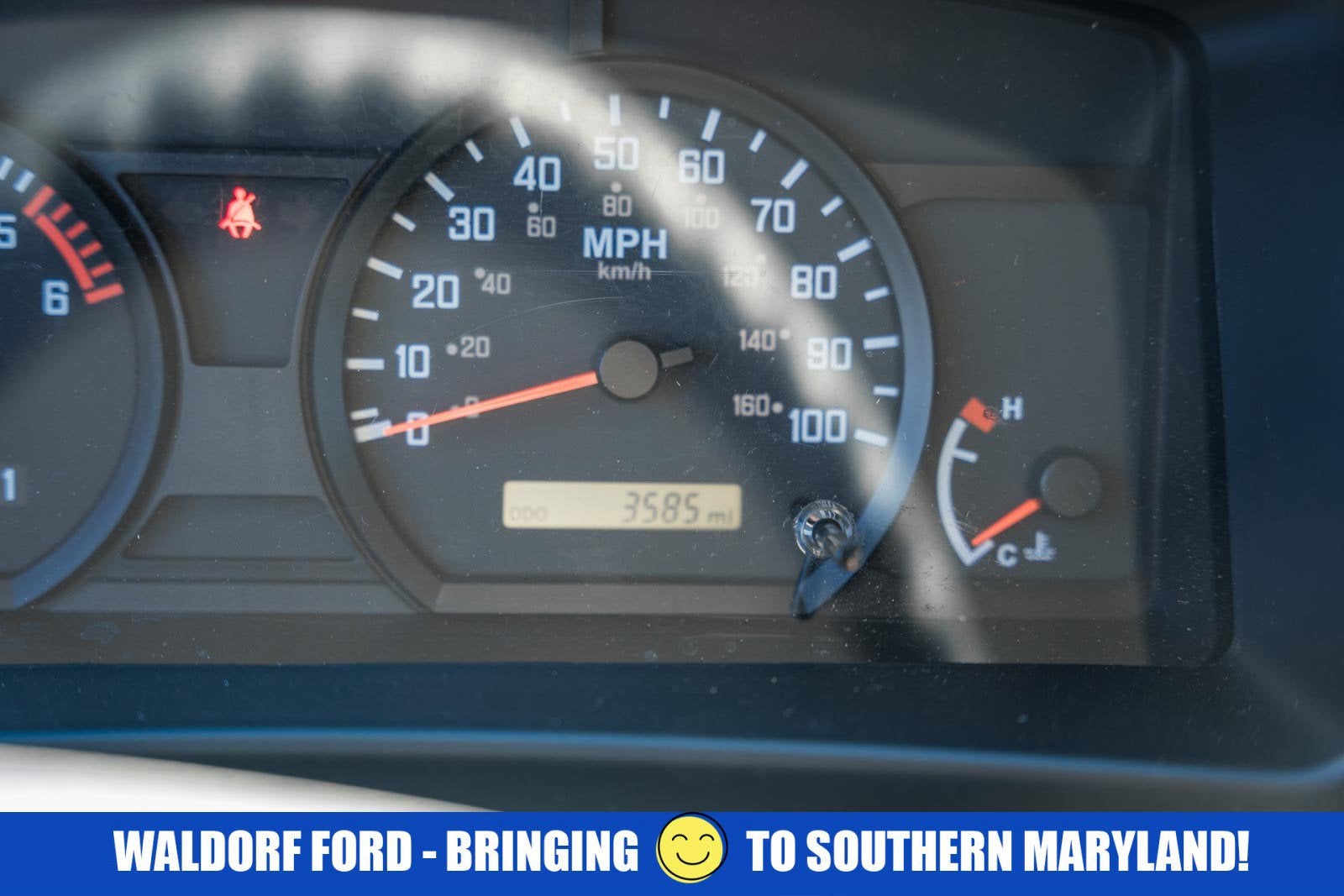

• Driver Information Center
• Floor mats
• Seat trim, Cloth
• Steering column, Tilt-Wheel
• Steering wheel, urethane

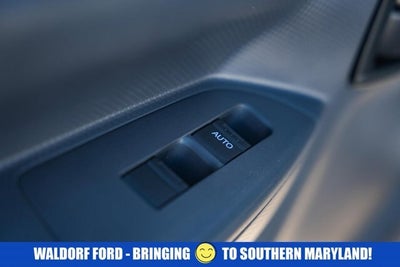

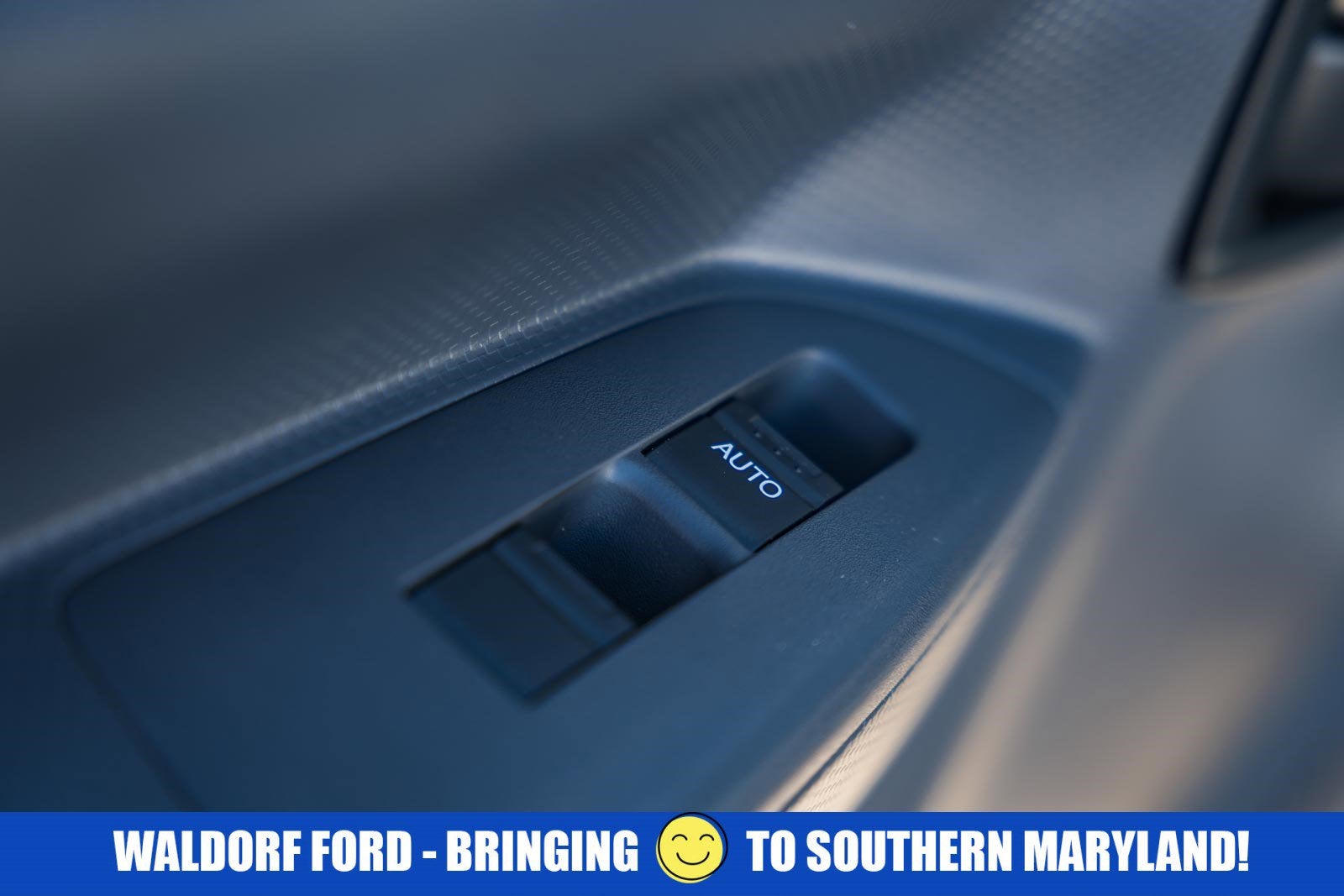

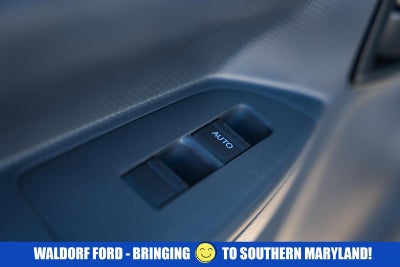

• Windows, power

• Drivetrain, rear-wheel drive
• Exhaust, single outlet
• Incomplete vehicle certification
• Rear axle, 4.10 ratio

• Daytime Running Lamps

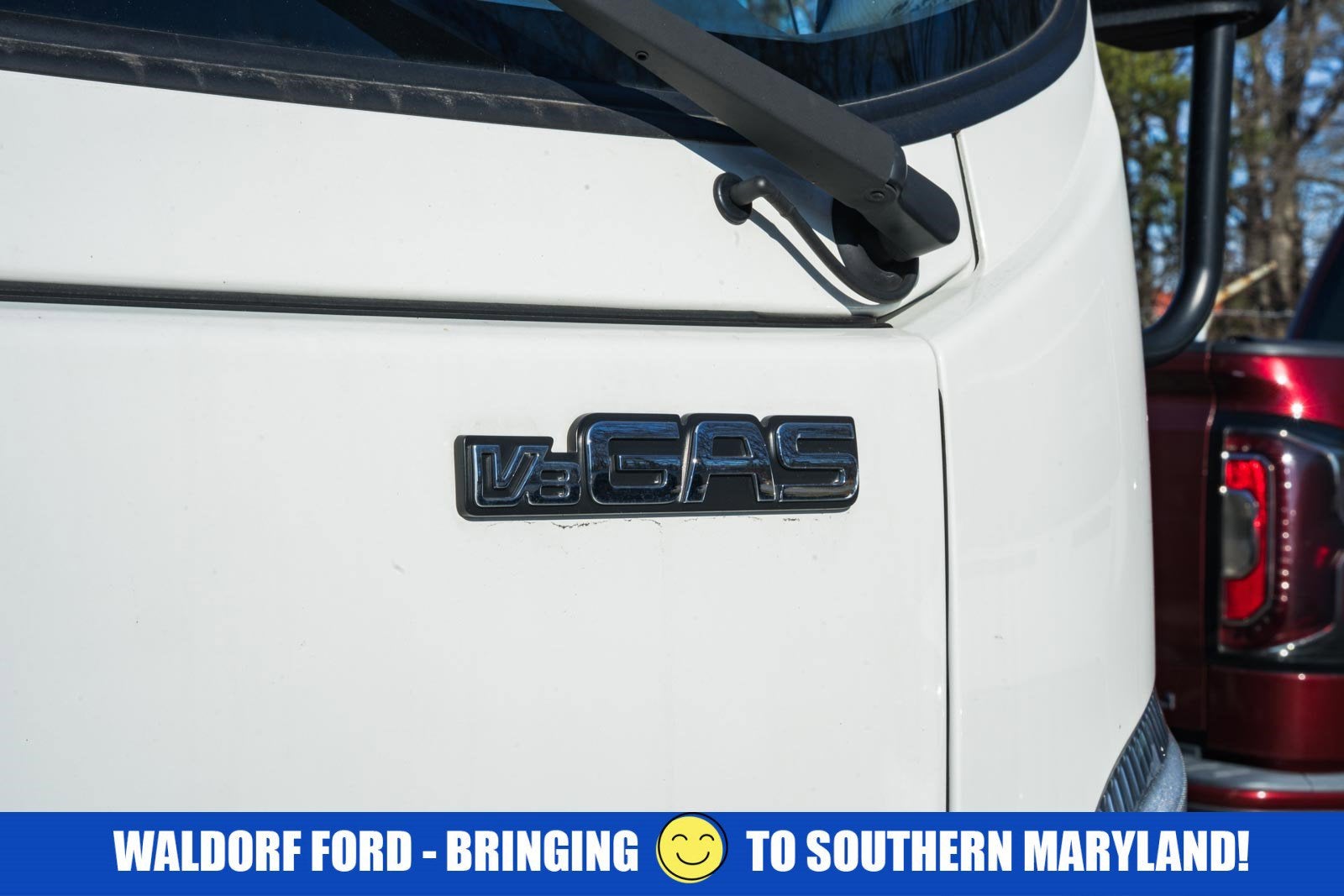

ENGINE, 6.6L V8 SIDI, GMPT-V8 8 CYLINDER V IRON BLOCK, FOUR CYCLE OVERHEAD

• valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm
• 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control
• engine oil cooler
• High Idle Mode (1200 rpm). (STD)

• PIO FIRE EXTINGUISHER AND SAFETY TRIANGLE INCLUDES STORAGE/MOUNTING PROVISIONS (Port Installed Option)
• ARC WHITE
• ENGINE 6.6L V8 SIDI GMPT-V8 8 CYLINDER V IRON BLOCK FOUR CYCLE OVERHEAD valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control engine oil cooler High Idle Mode (1200 rpm). (STD)
• REAR AXLE 4.10 RATIO

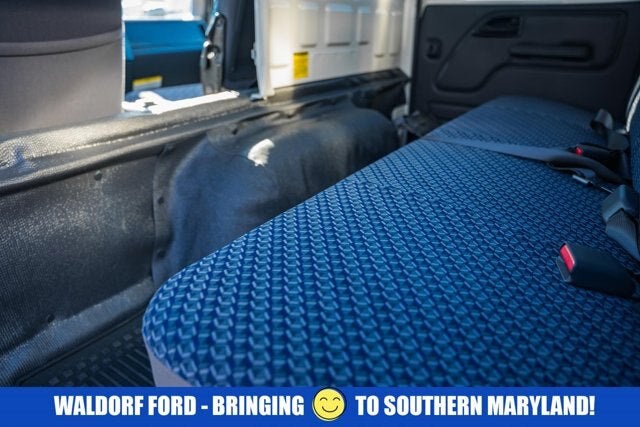

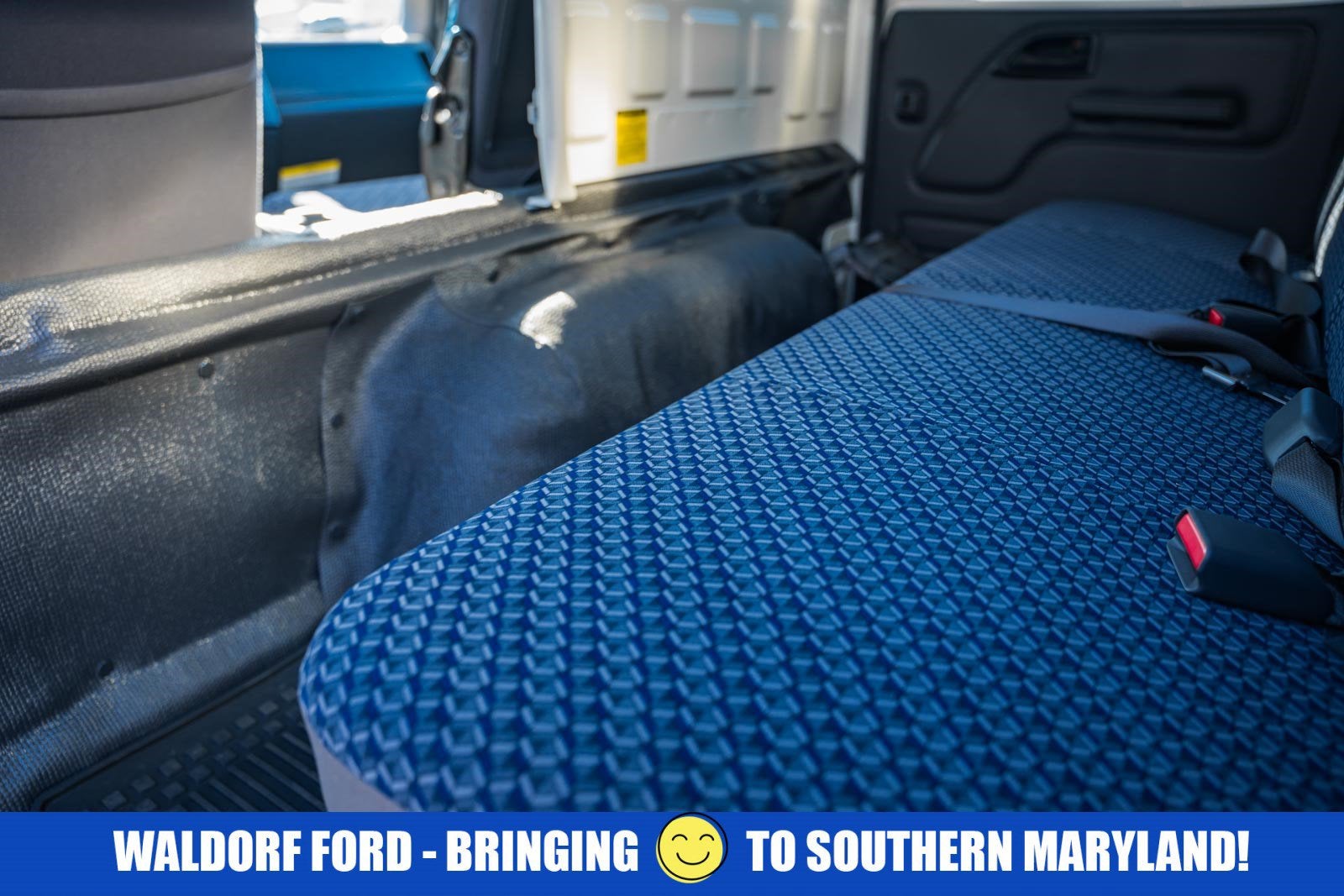

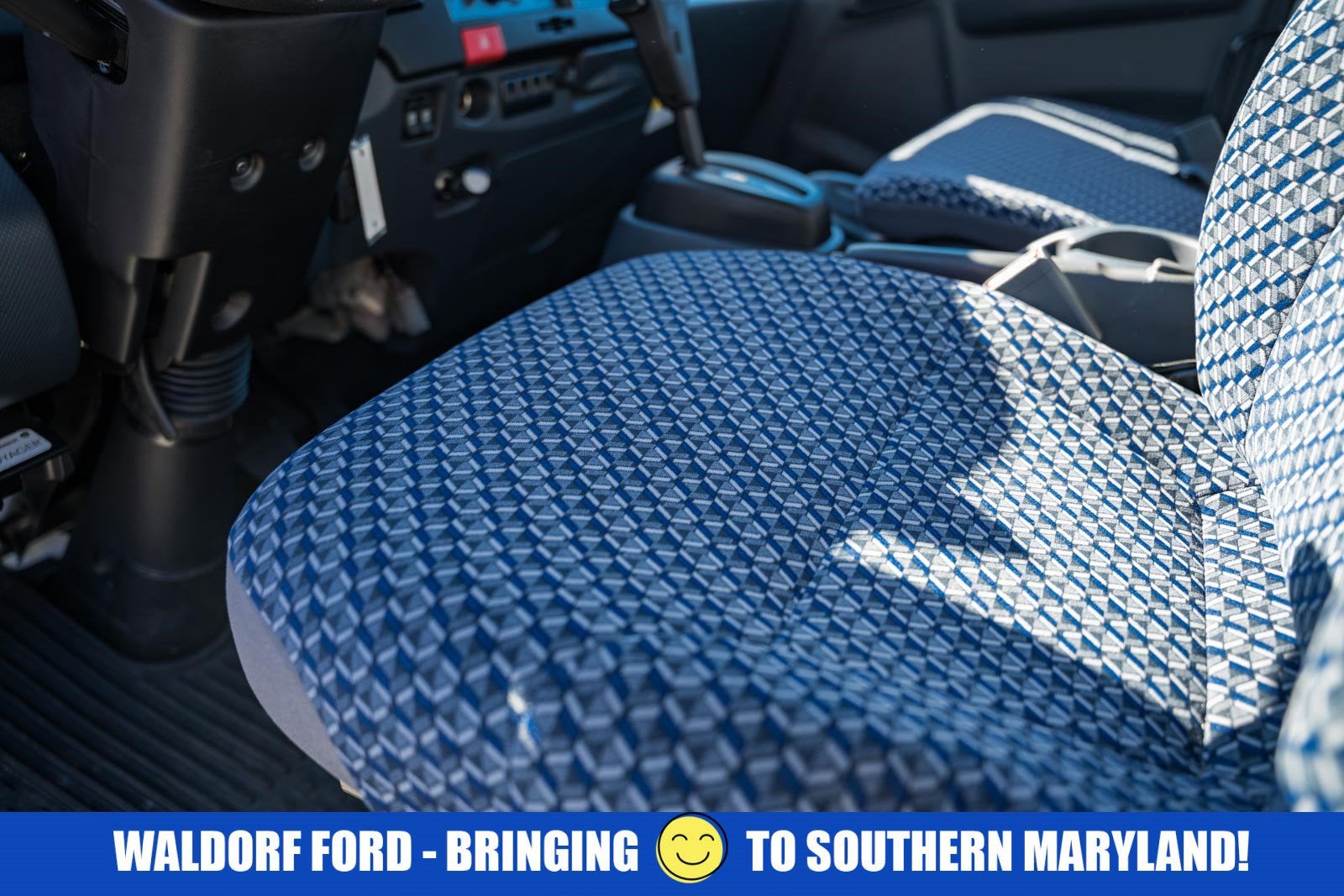

• SEAT FRONT HIGH BACK BUCKET DRIVER AND PASSENGER tricot cloth covered reclining high back driver seat with single two-occupant fold down passenger seat (STD)
• MEDIUM ASH GRAY CLOTH SEAT TRIM
• TRANSMISSION 8-SPEED AUTOMATIC 8L90 (STD)
• WHEELS 19.5" X 6" K STEEL (STD)

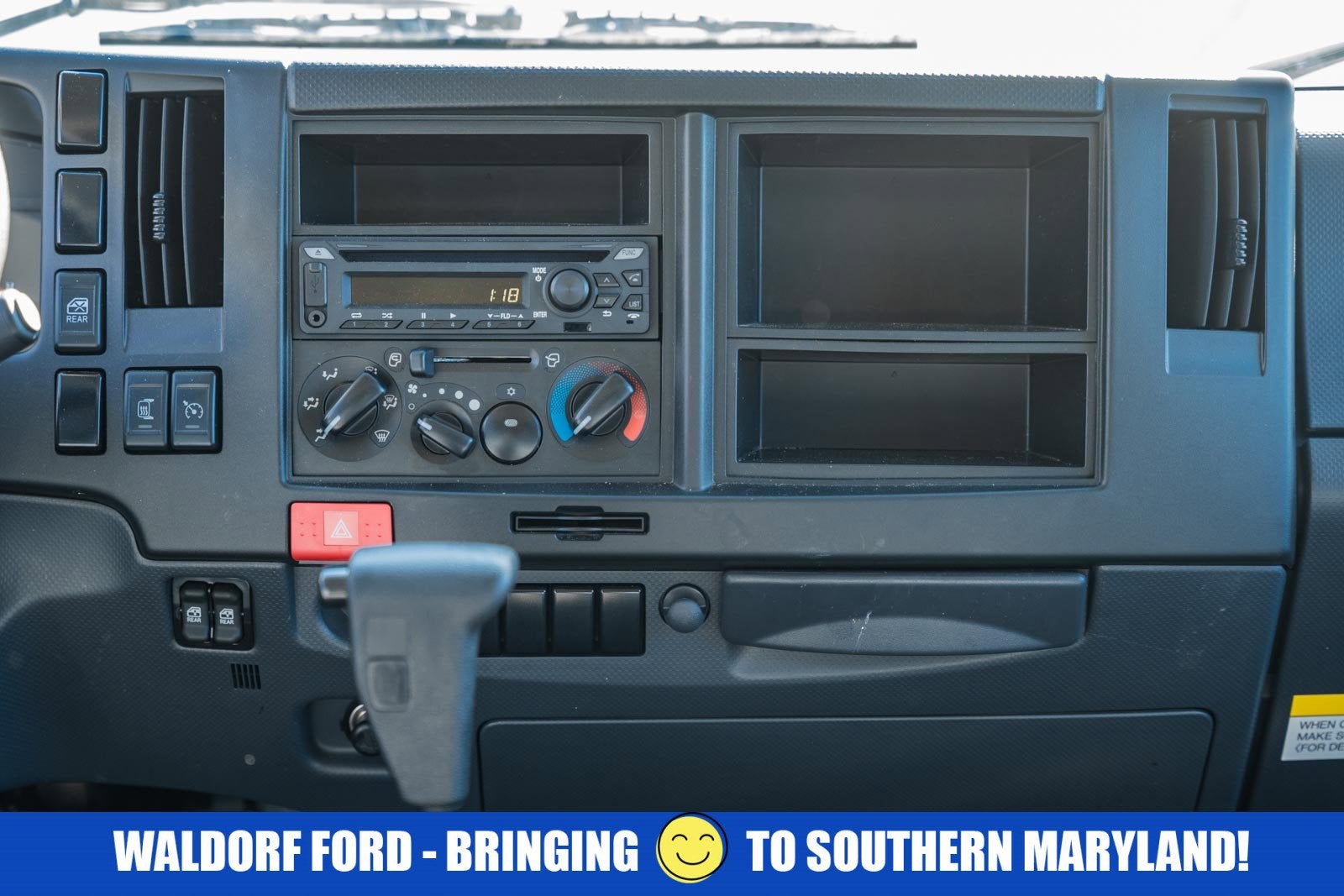

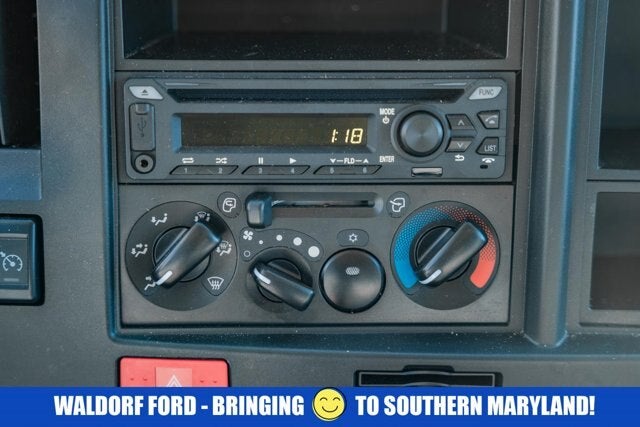

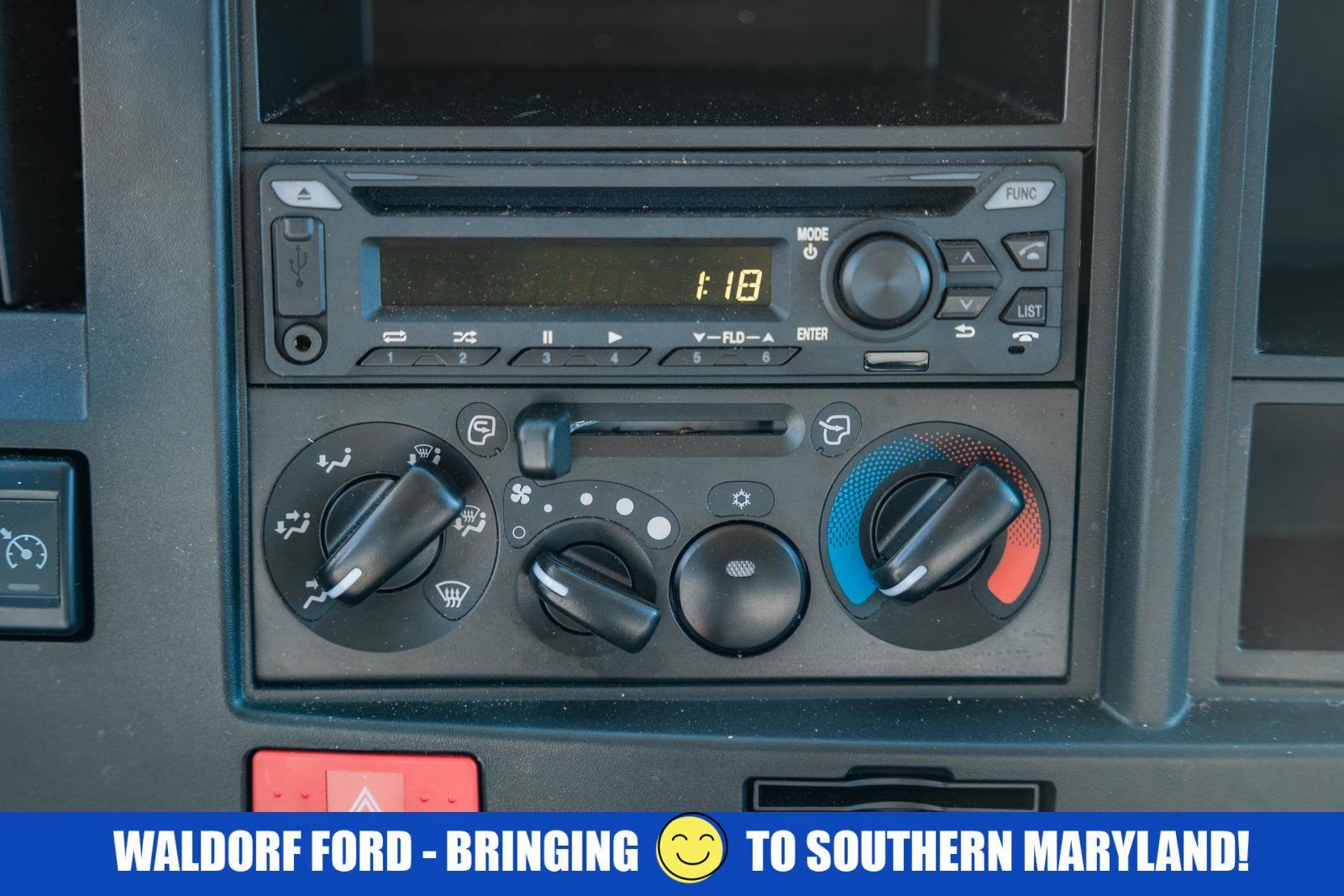

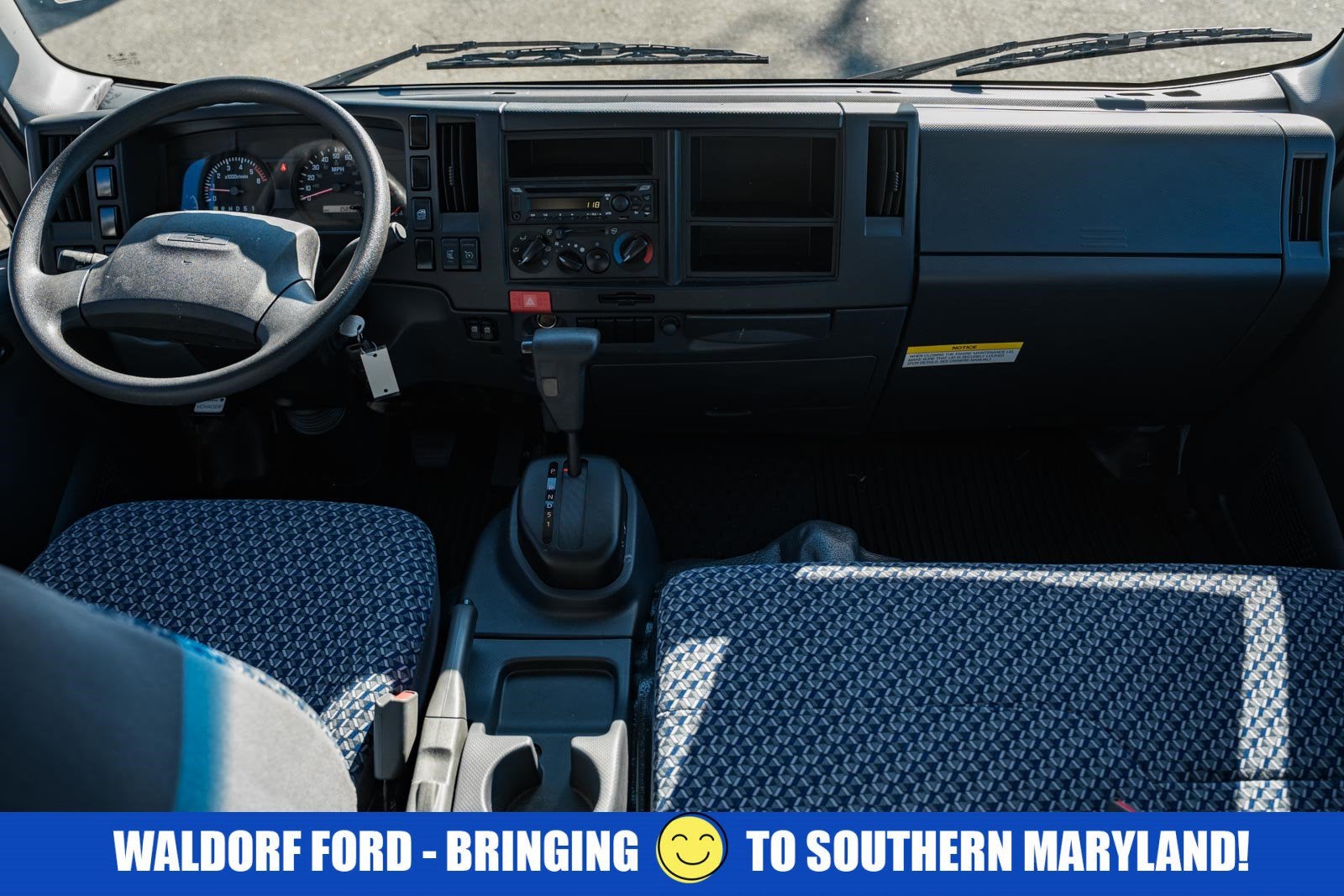

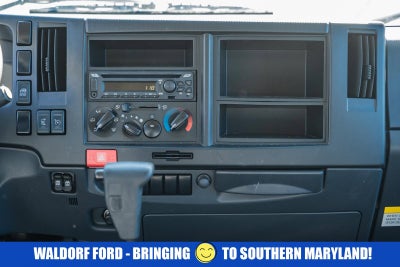

• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AUXILIARY JACK USB PORT AND Bluetooth® (STD)
• PREFERRED EQUIPMENT GROUP includes standard equipment

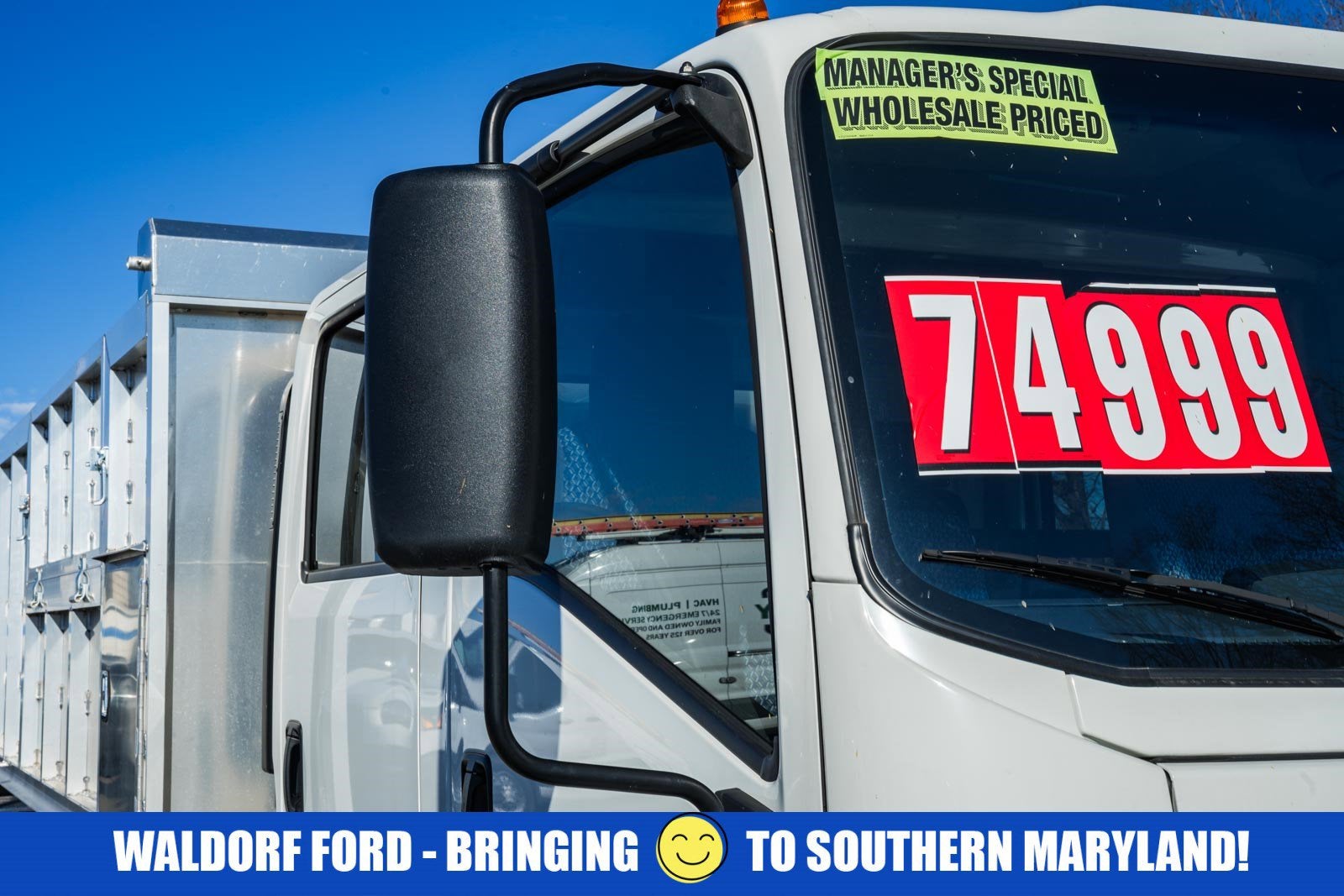

• PIO MIRROR OUTSIDE LEFT-HAND AND RIGHT-HAND WITH INTEGRAL CONVEX MIRRORS HEATED DUAL REMOTE CONTROLS (Port Installed Option)

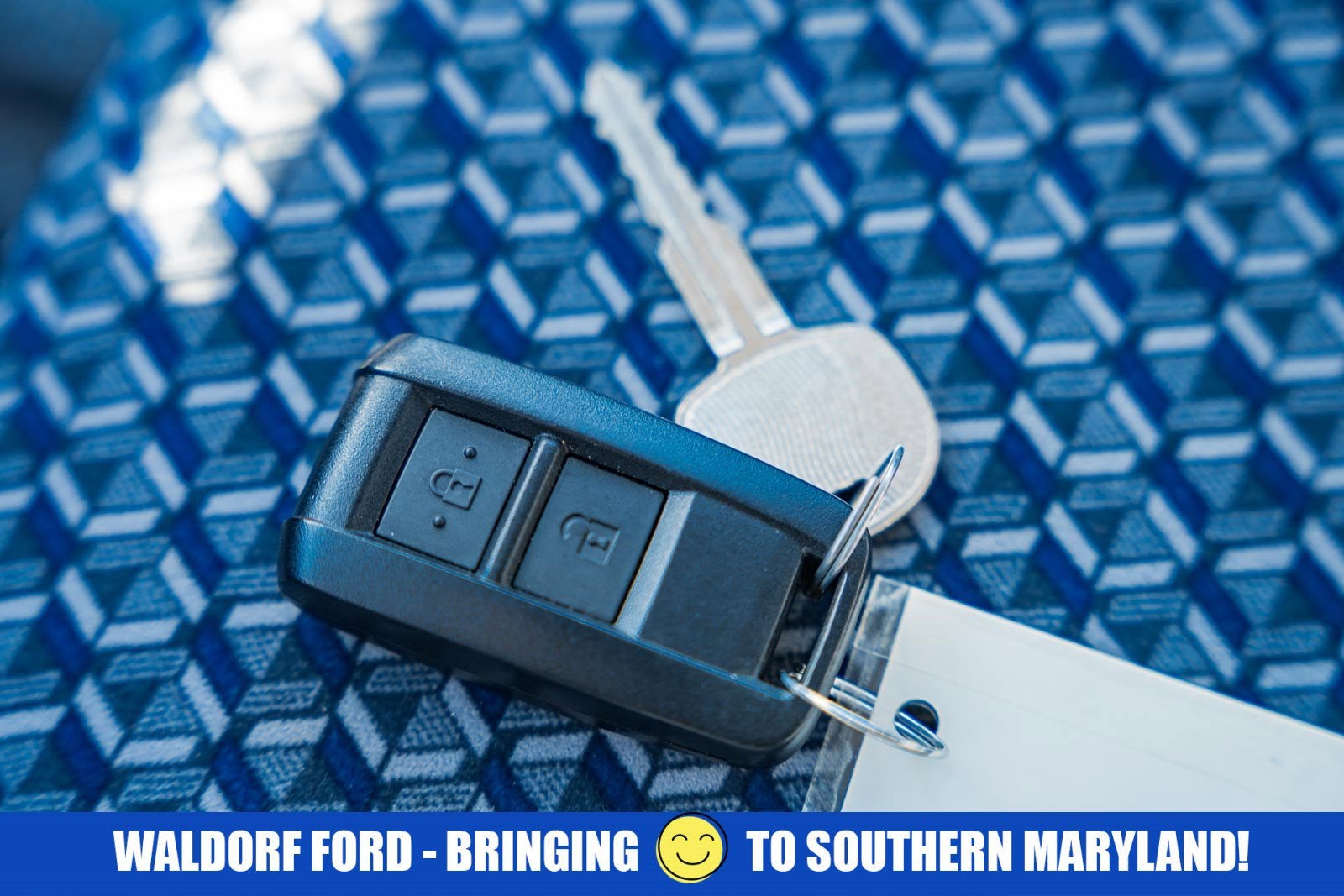

• PIO REMOTE KEYLESS ENTRY (Port Installed Option)
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season

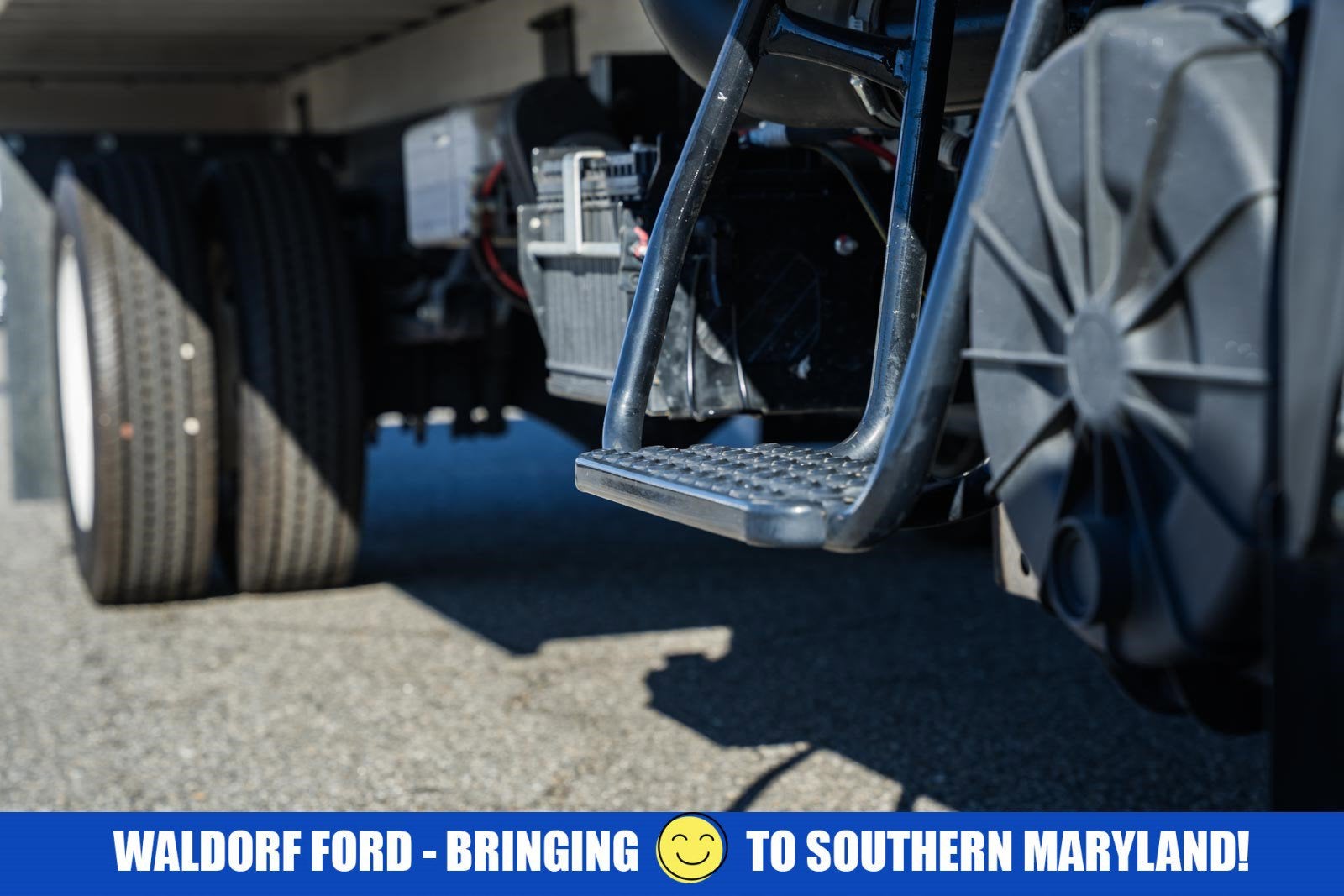

• Running Boards/Side Steps

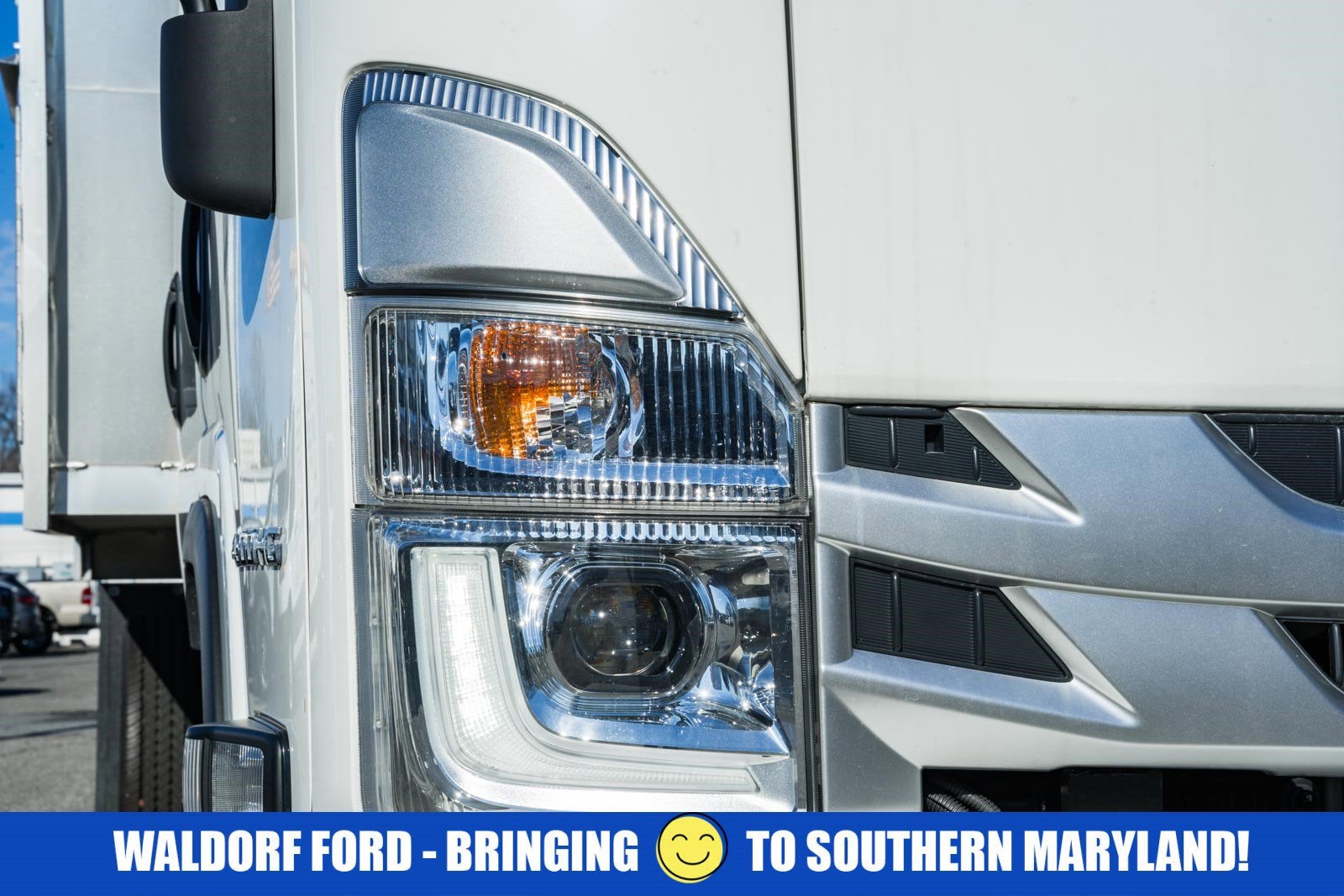

• LED Headlights
• AM/FM Stereo
• CD Player
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Cloth Seats
• Bucket Seats
• Cloth Seats
• Floor Mats
• Adjustable Steering Wheel

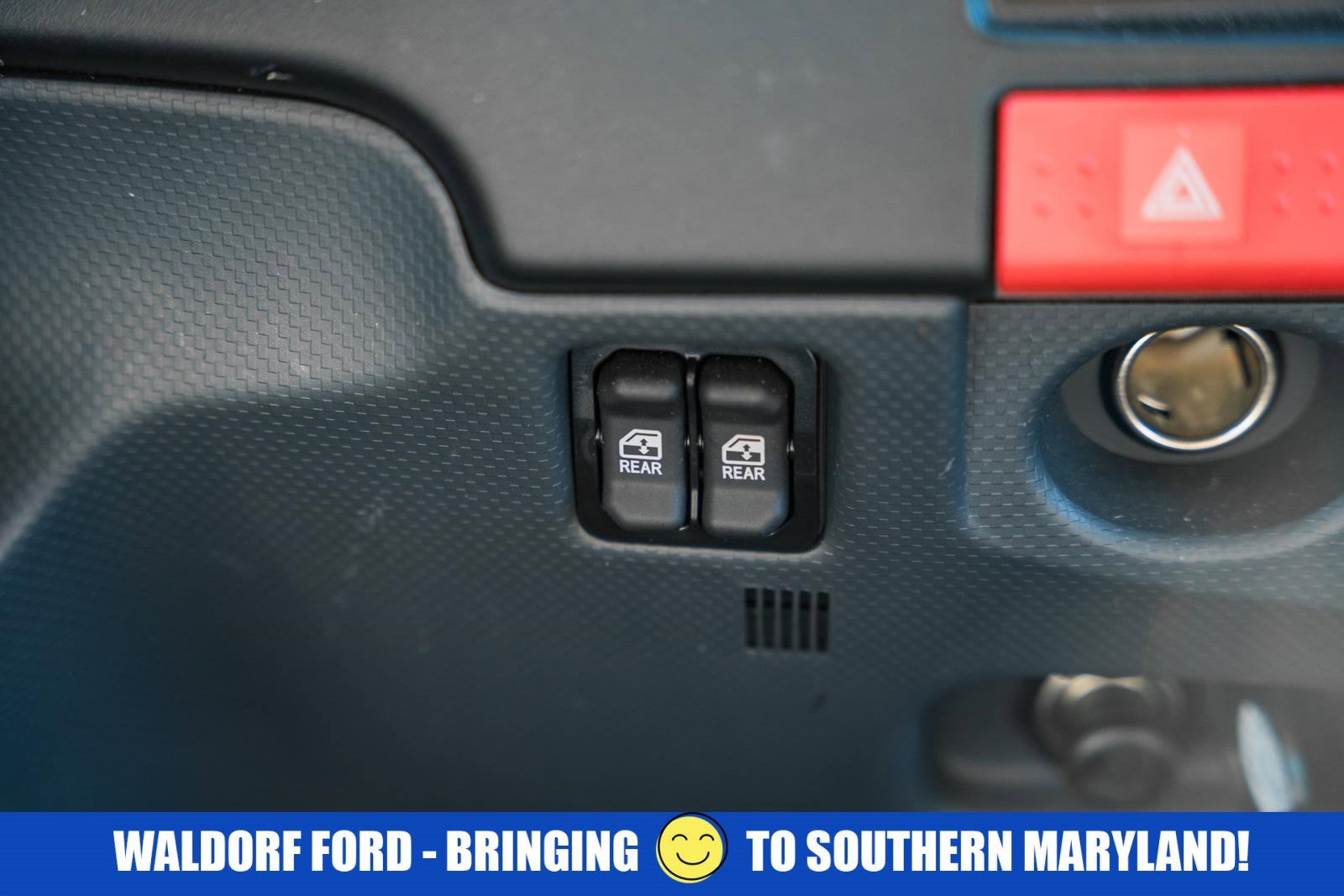

• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Daytime Running Lights

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.5 x
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 170
• Exterior Dimensions
• Body Length Default Value (ft): 16
• Cab to Axle (in): 114.5
• Cab to End of Frame (in): 157.6
• Frame Width, Rear (in): 33.5
• Front Bumper to Back of Cab (in): 109.9
• Ground Clearance, Front (in): 8.3
• Ground Clearance, Rear (in): 8.3
• Ground to Top of Frame (in): 33.0
• Height, Overall (in): 91.1
• Length, Overall (in): 267.5
• Overhang, Front (in): 48.4
• Overhang, Rear w/o bumper (in): 43.1
• Wheelbase (in): 176
• Width, Max w/o mirrors (in): 81.3
• Frame
• Frame RBM (N/A): 316800
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.50 X 2.76 X 0.24
• Frame Type: Ladder-Type Channel-Section
• Sect Modulus Rails Only (in³): 7.20
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 38.6
• Fuel Tank Location: Frame Rail
• Interior Dimensions
• Front Head Room (in): 38.40
• Front Hip Room (in): 67.70
• Front Leg Room (in): 29.50
• Front Shoulder Room (in): 70.70
• Passenger Capacity: 7
• Second Head Room (in): 37.30
• Second Hip Room (in): 69.30
• Second Leg Room (in): 22.30
• Second Shoulder Room (in): 69.30
• Medium Duty Performance
• Torque : Clutch Engage (ft-lbs)
• Steering
• Steering Ratio (:1), At Lock: 18.8 - 20.9
• Steering Ratio (:1), On Center: 18.8 - 20.9
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 51.9
• Turning Diameter - Wall to Wall (ft): 58.0
• Summary

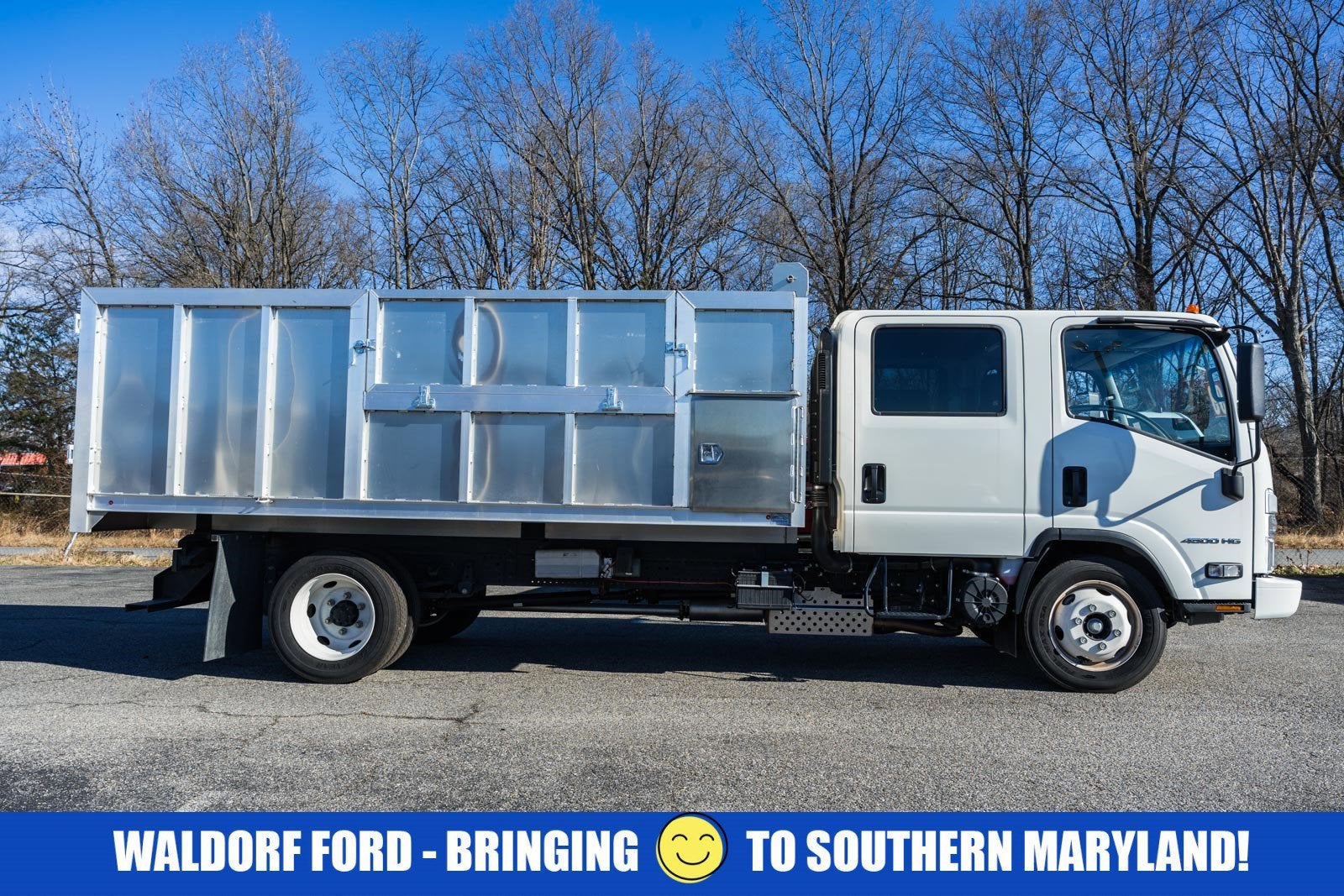

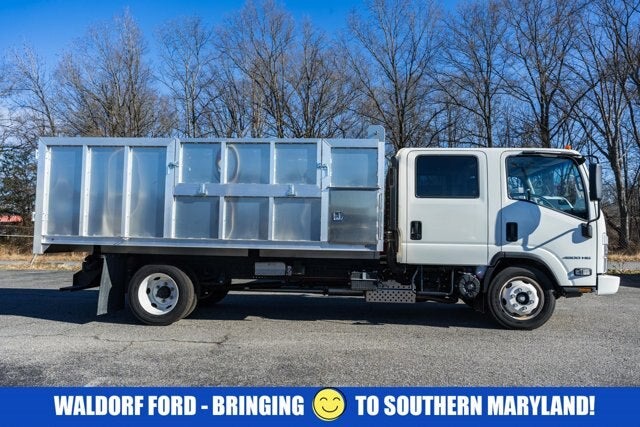

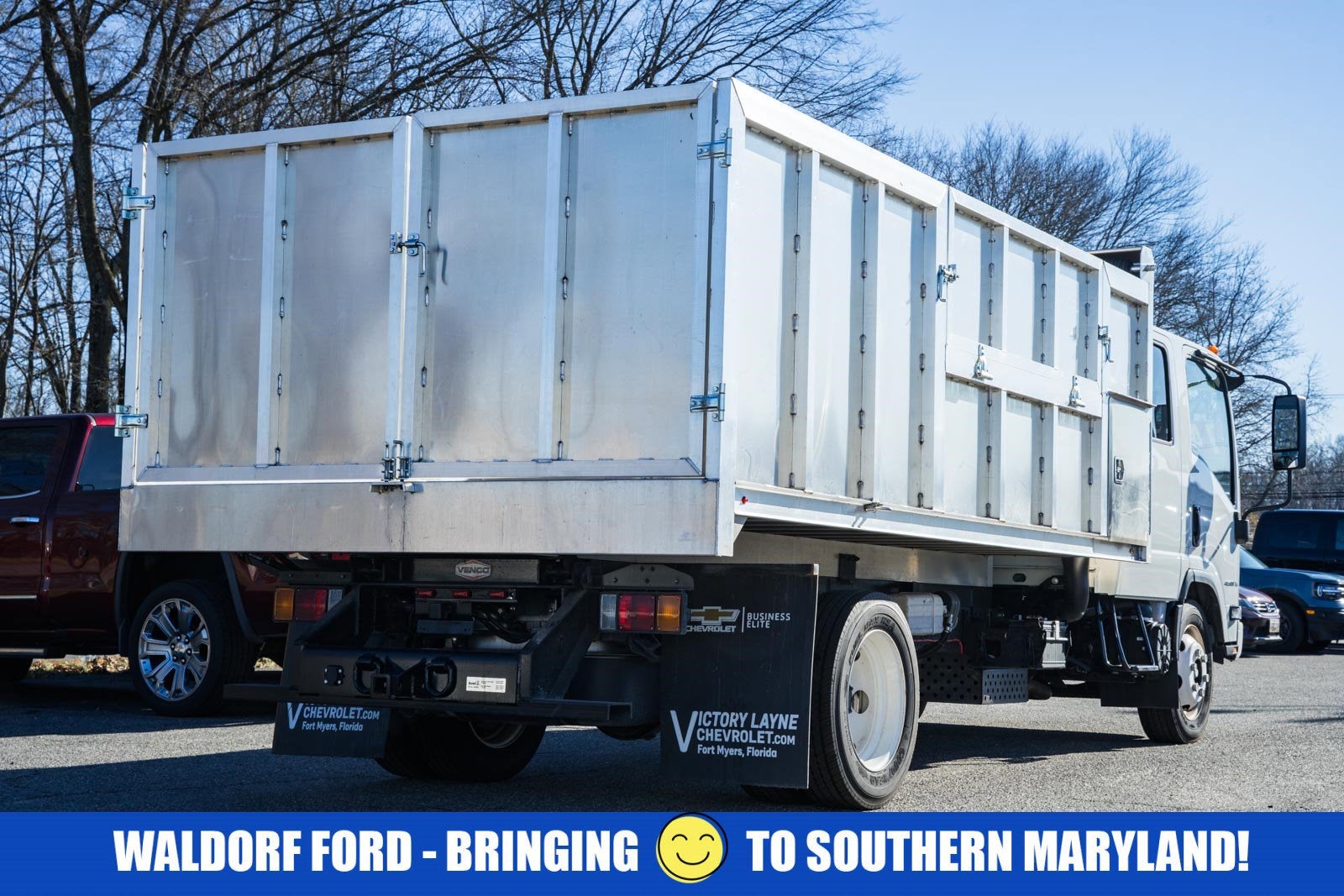

• Body Style: Crew Cab Chassis Cab

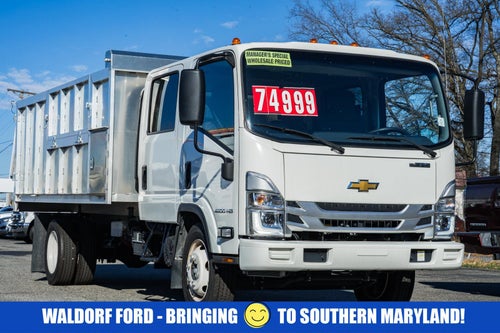

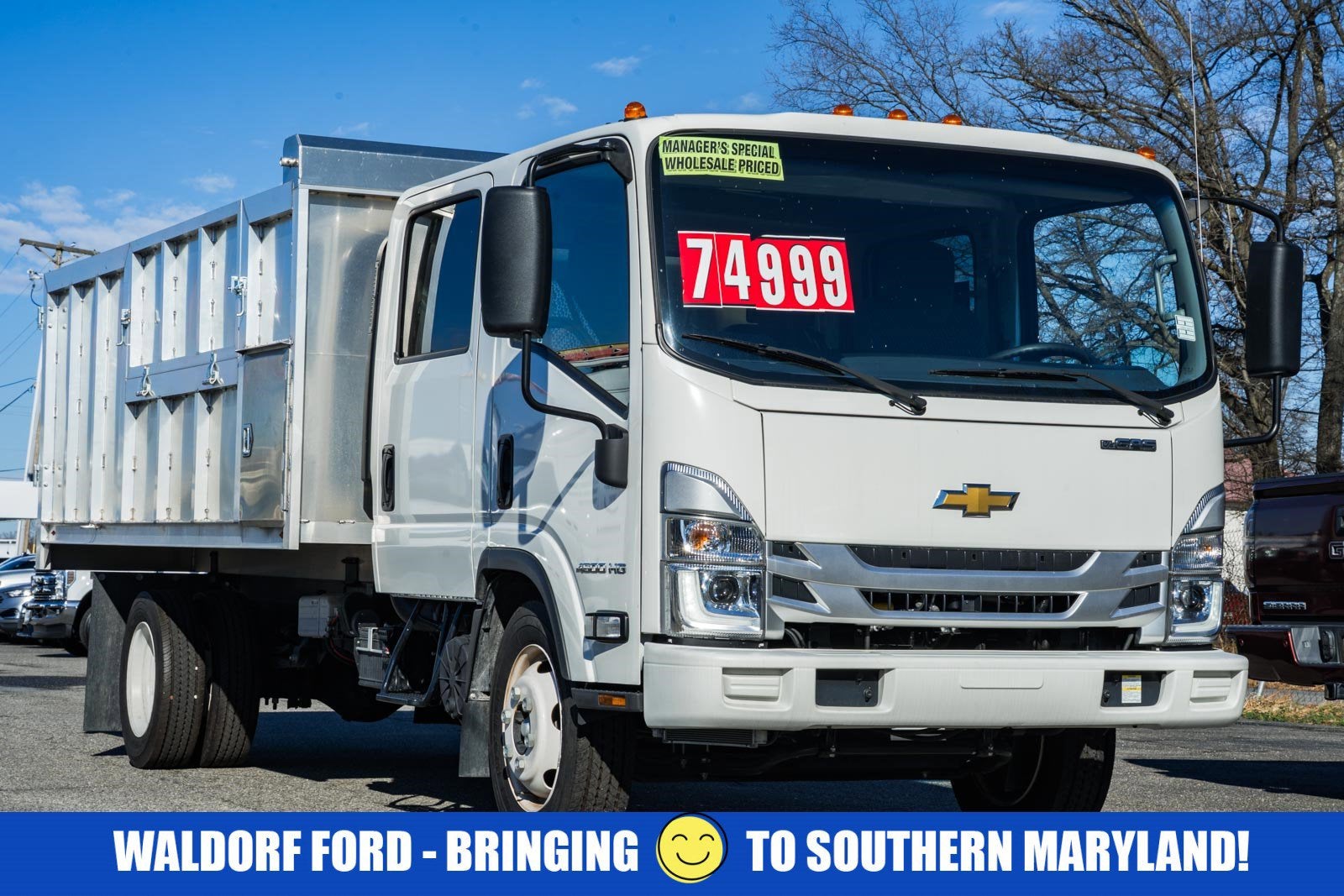

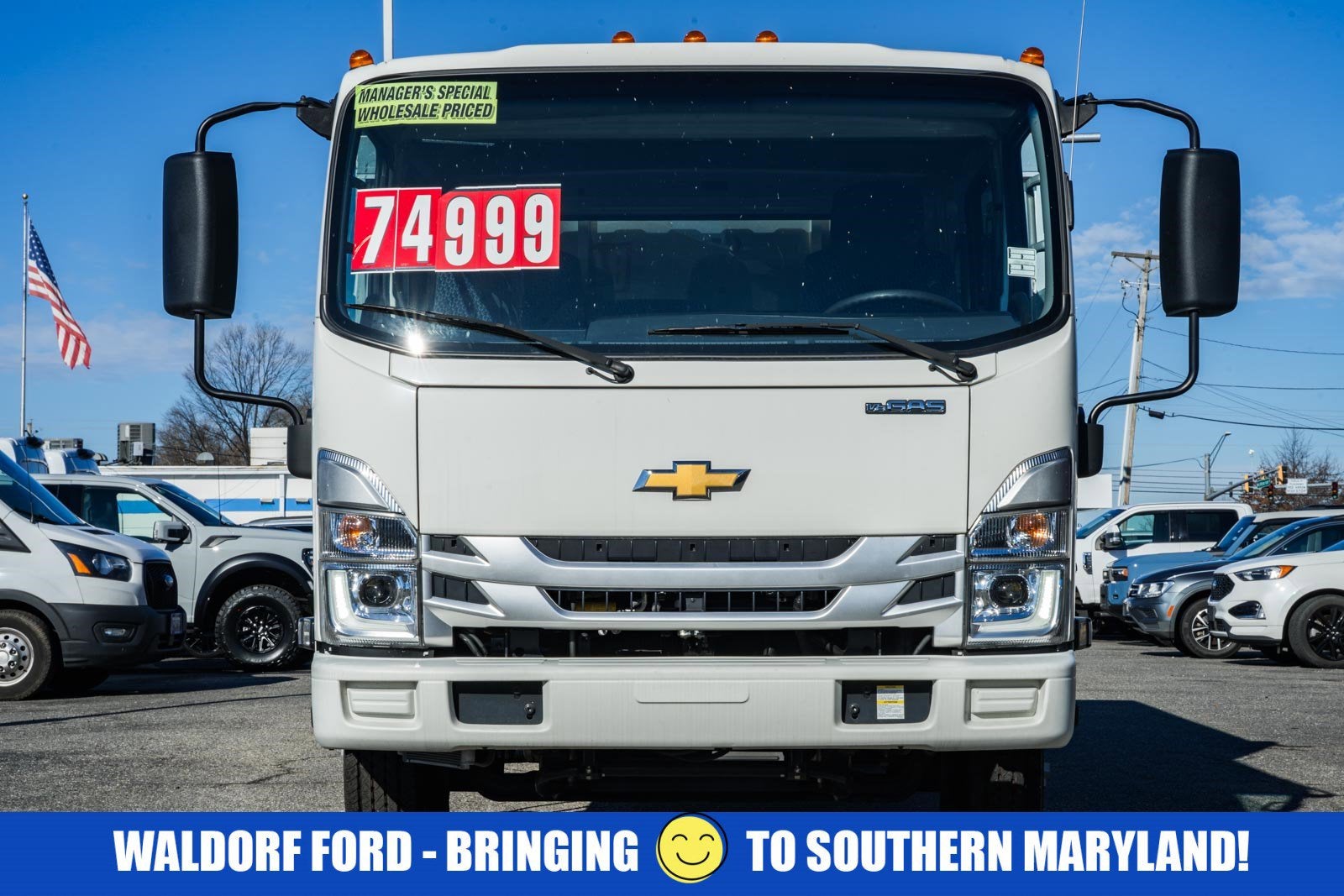

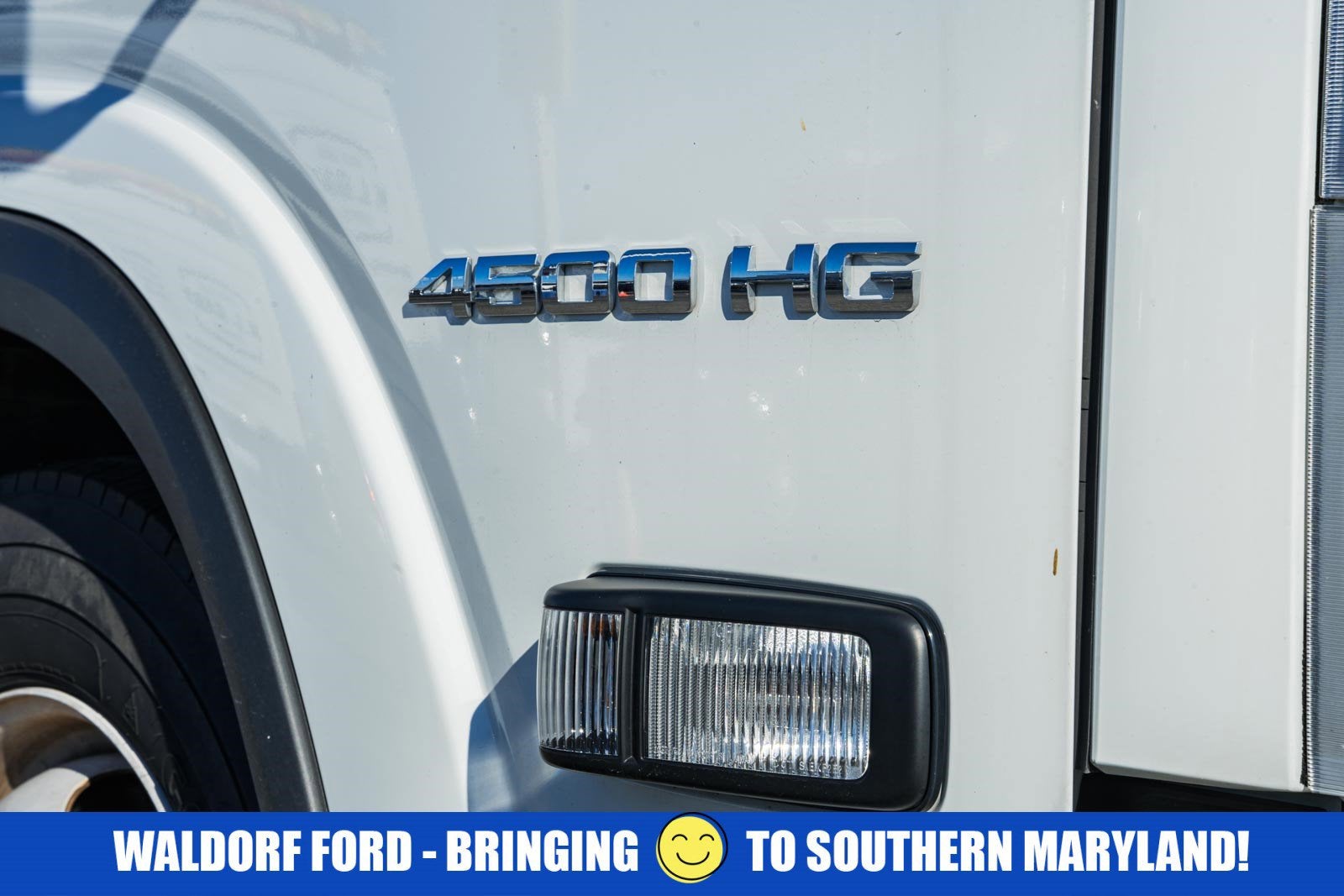

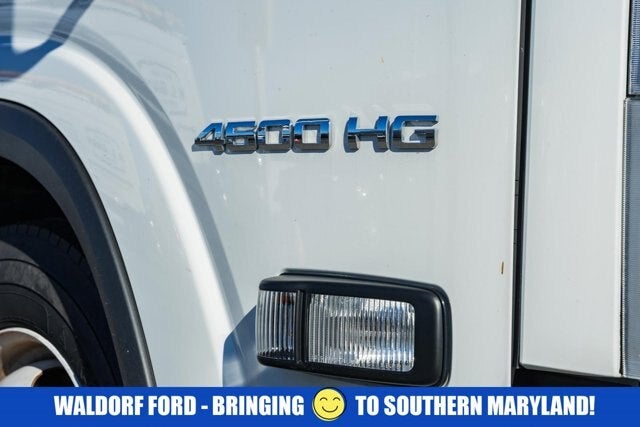

• Vehicle Name: Chevrolet 4500 HG LCF Gas
• Suspension
• Axle Capacity - Front (lbs): 6830
• Axle Capacity - Rear (lbs): 11020
• Axle Ratio (:1) - Rear: 4.10
• Axle Type - Front: Reverse Elliot I-Beam
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 42.0
• Shock Absorber Diameter - Rear (mm): 42.0
• Spring Capacity - Front (lbs): 6830
• Spring Capacity - Rear (lbs): 12900
• Stabilizer Bar Diameter - Front (in): 1.65
• Suspension Type - Front: Semi-Elliptical Multi-Leaf Spring
• Suspension Type - Rear: Semi-Elliptical Multi-Leaf Spring

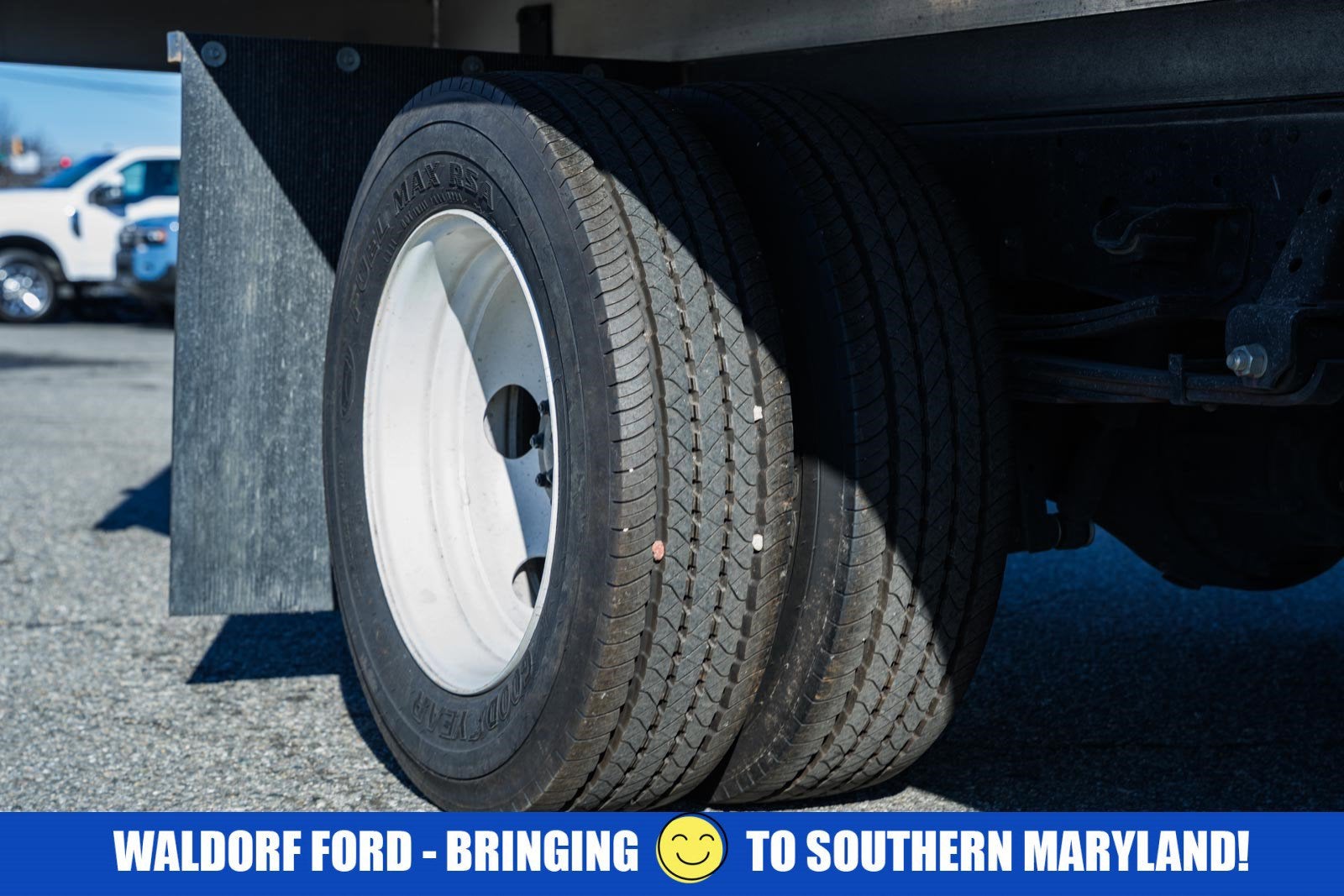

• Tires
• Front Tire Capacity (lbs): 6630
• Front Tire Order Code: 2TC
• Front Tire Size: 225/70R19.5
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Rear Tire Capacity (lbs): 12460
• Rear Tire Order Code: 3TC
• Rear Tire Size: 225/70R19.5
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 4
• Weight Information
• Curb Weight - Front (lbs): 4143
• Curb Weight - Rear (lbs): 2400
• Gross Axle Wt Rating - Front (lbs): 6630
• Gross Axle Wt Rating - Rear (lbs): 11020
• Gross Combined Wt Rating (lbs): 20500
• Gross Vehicle Weight Rating Cap (lbs): 14500

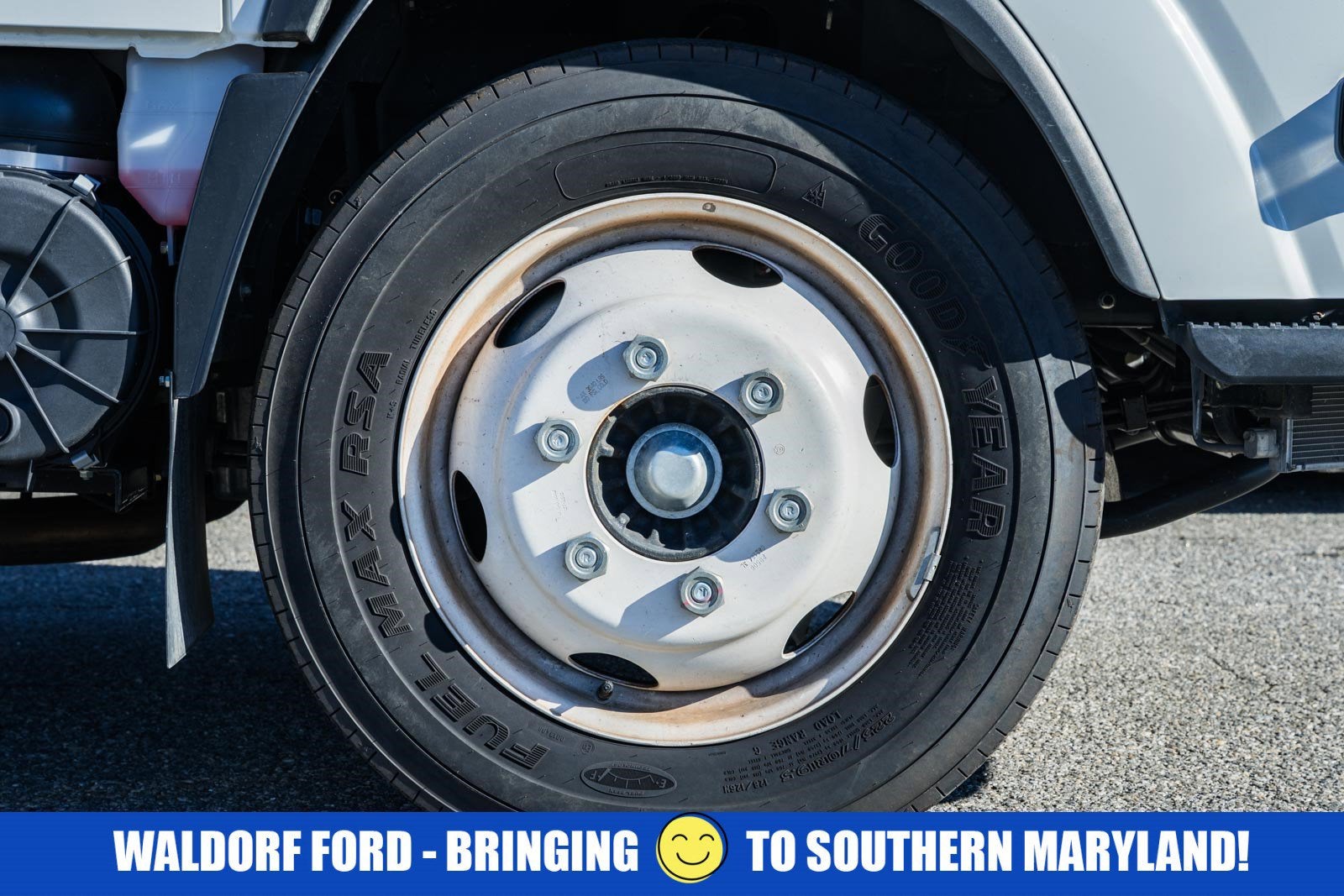

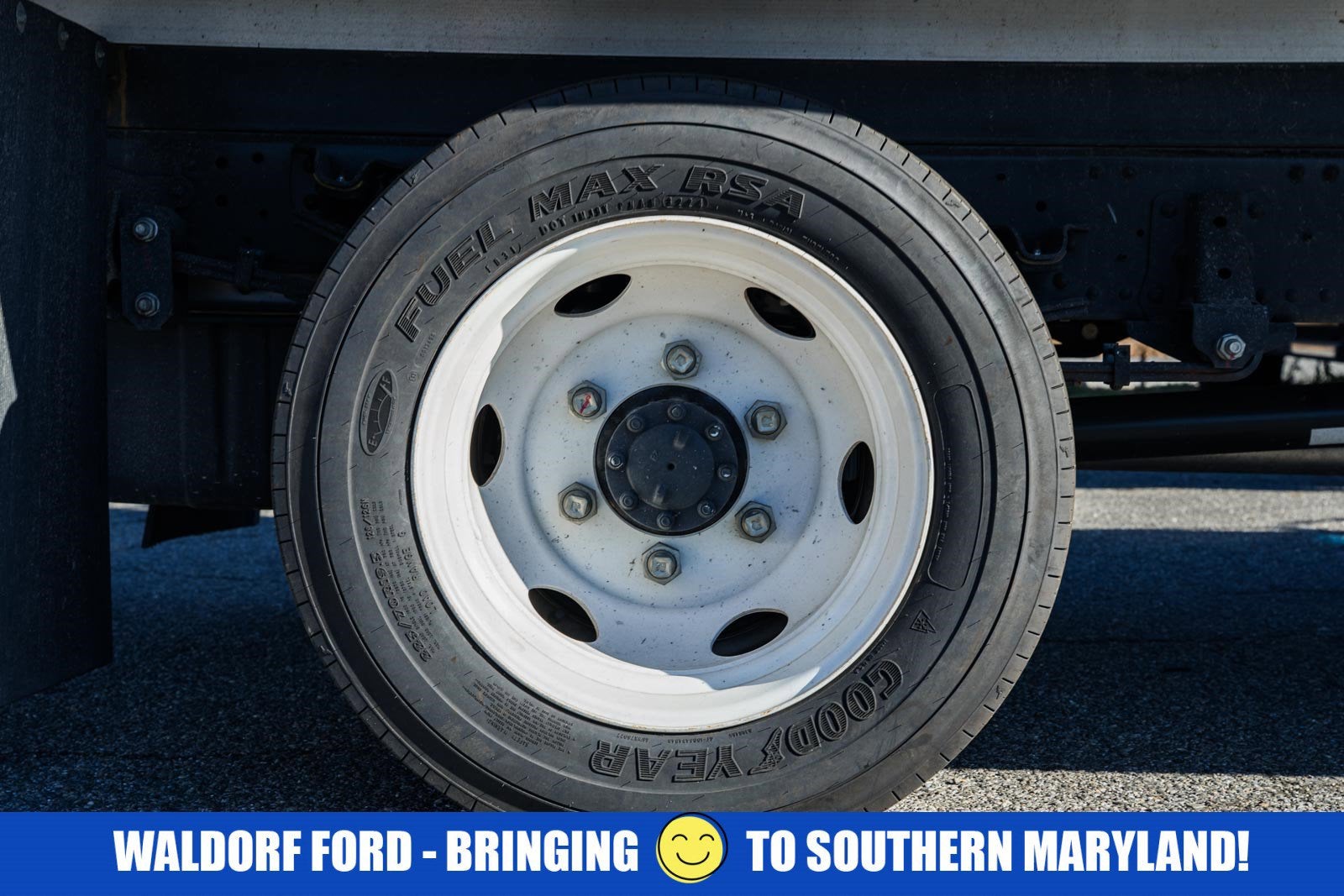

• Wheels
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Front Wheel Material: Steel
• Front Wheel Offset (mm): 127
• Front Wheel Size (in): 19.5 x 6.0
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Rear Wheel Material: Steel
• Rear Wheel Offset (mm): 127
• Rear Wheel Size (in): 19.5 x 6.0
